TOPOGRAPHY ​
​
Aim: to resolve site topography.
​
Edge lane properties - the targeted site for development - sit on a shallow slope.
![](https://static.wixstatic.com/media/66d5a7_ae8145de035e466db9deae0c8d957d53~mv2_d_4963_2617_s_4_2.png/v1/fill/w_554,h_292,al_c,q_95,enc_auto/66d5a7_ae8145de035e466db9deae0c8d957d53~mv2_d_4963_2617_s_4_2.png)
Below: section from A to A illustrating site gradient with highest and lowest points indicated. Edge lane properties are offset against the original ground line.
![](https://static.wixstatic.com/media/66d5a7_266962b3a00141f59eeb0cd0cadeb171~mv2.jpg/v1/fill/w_980,h_109,al_c,q_90,enc_auto/66d5a7_266962b3a00141f59eeb0cd0cadeb171~mv2.jpg)
![](https://static.wixstatic.com/media/66d5a7_e9c937ee85544793810cc0302498ecd0~mv2_d_1863_1489_s_2.png/v1/fill/w_111,h_89,al_c,q_95,enc_auto/66d5a7_e9c937ee85544793810cc0302498ecd0~mv2_d_1863_1489_s_2.png)
Highest point - 2.8m
![](https://static.wixstatic.com/media/66d5a7_fe2ea961d8fc41359c5c7e45e73c35fd~mv2_d_1846_1475_s_2.jpg/v1/fill/w_103,h_83,al_c,q_90,enc_auto/66d5a7_fe2ea961d8fc41359c5c7e45e73c35fd~mv2_d_1846_1475_s_2.jpg)
Lowest point - 1.32m
![](https://static.wixstatic.com/media/66d5a7_c3b68552cf5e4034a38e000a3087ae47~mv2_d_2238_4414_s_2.jpg/v1/fill/w_79,h_156,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/66d5a7_c3b68552cf5e4034a38e000a3087ae47~mv2_d_2238_4414_s_2.jpg)
In order to build between Edge Lane and the Essoldo - so as to allow circulation to the canal side - stepped raft foundations can be used to reduce the overall gradient of descent: this creates opportunities to design accessible circulation spaces due to gradual changes in height.

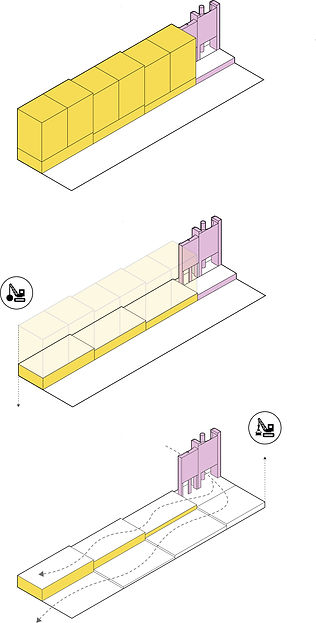

Left; a diagram illustrating how demolishing the properties on Edge lane for redevelopment as well as applying a series of stepped raft foundations to the rear of the site creates two opposing gradients within the site; an ascending gradient at street level and a descending gradient to the canal.
![](https://static.wixstatic.com/media/66d5a7_6d8b4c6c02c04e5ba249644e8b97fe3d~mv2.png/v1/fill/w_116,h_29,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/66d5a7_6d8b4c6c02c04e5ba249644e8b97fe3d~mv2.png)
Above - stepped wide toe reinforced concrete raft set against original ground line and drainage.
​
Advantages: due to difficulties in site accessibility, the use of raft foundations would be appropriate as they require little excavation.
​
​
A
A
